CÓDIGO: SDVPK6250CH

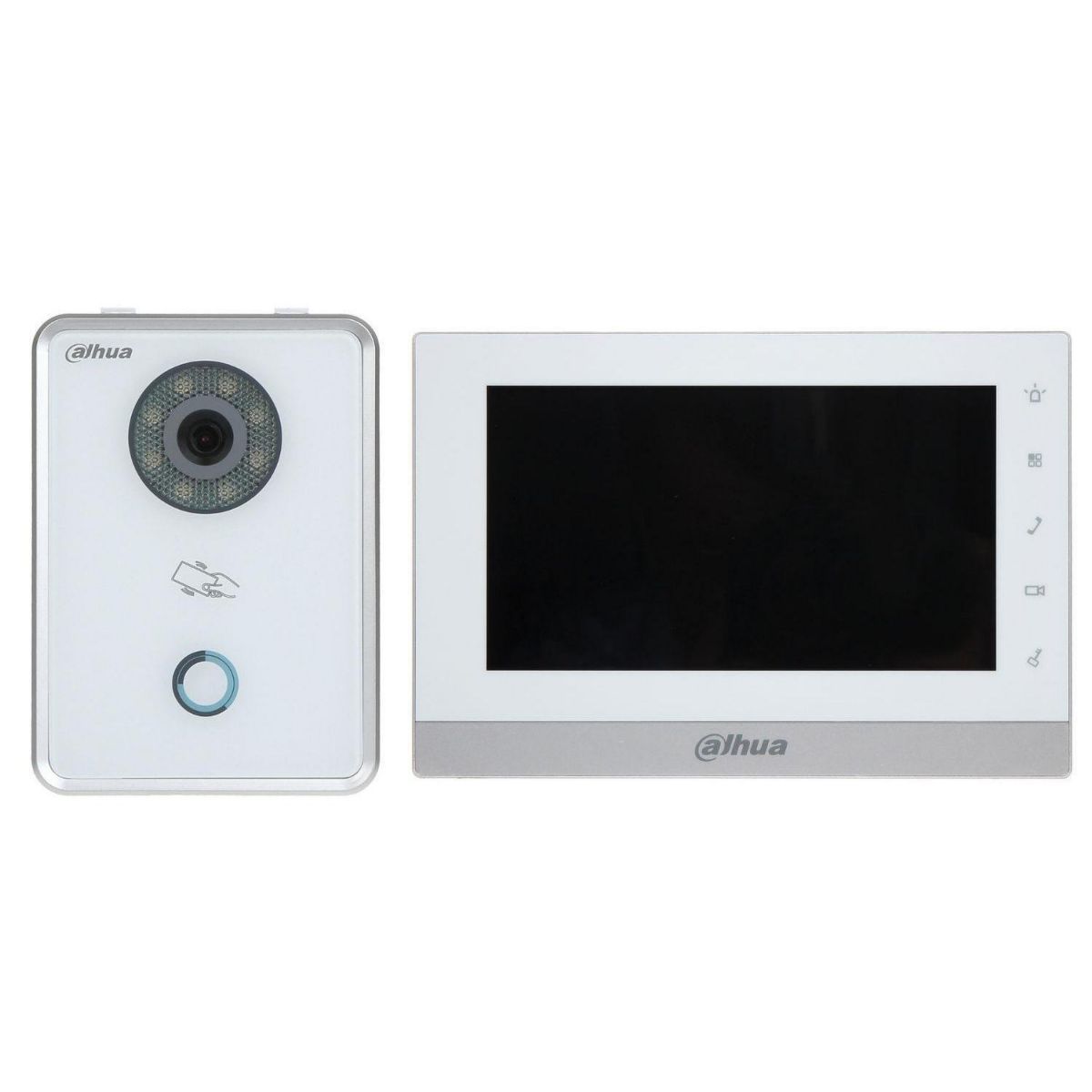

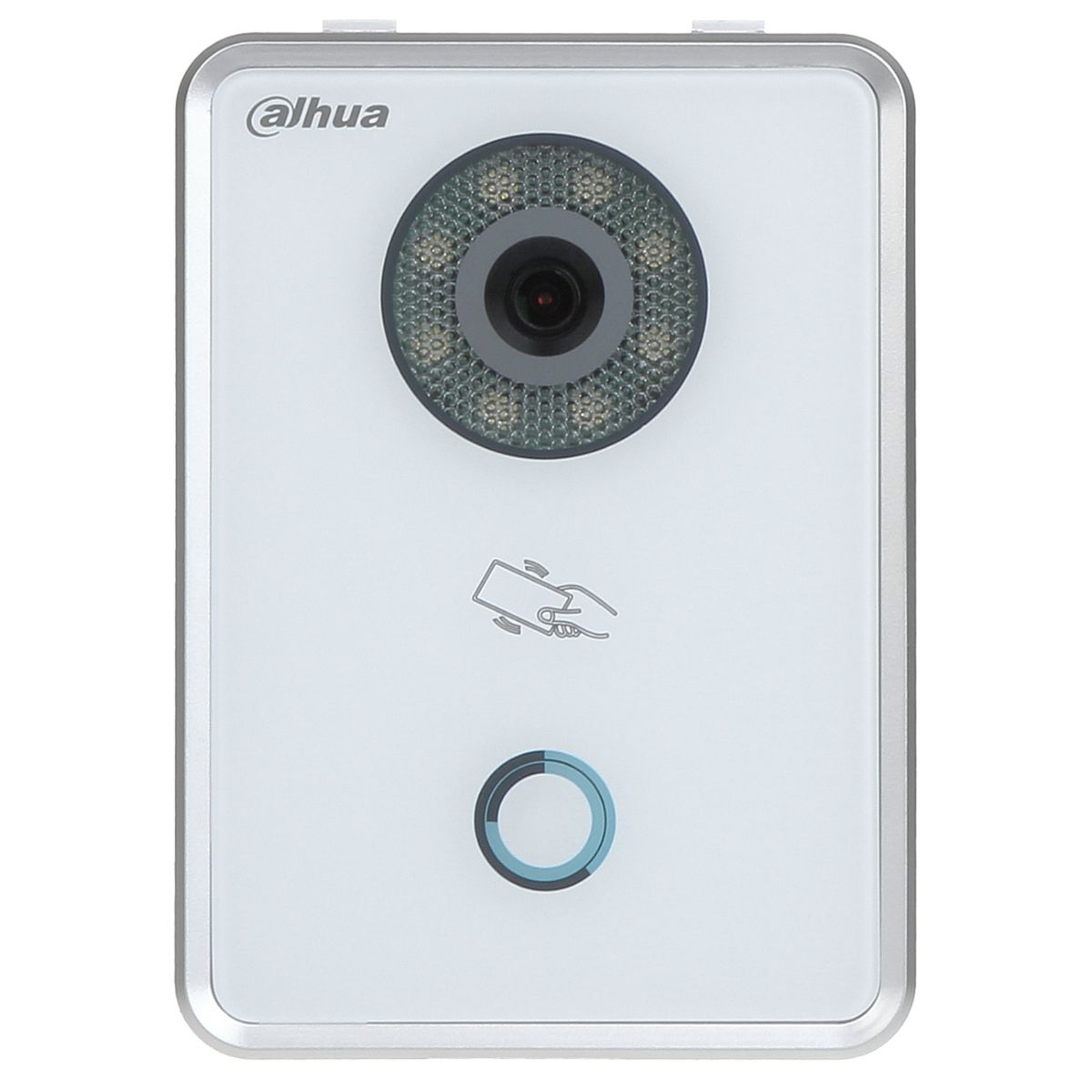

Dahua, nos ofrece este kit de video portero que consta del portero de calle VTO6210BW, con la Pantalla VTH1550CH, incluyendo las fuentes de alimenatción y accesorios de montaje, solo necesitas una conexión de red entre ambos equipos y acceso a internet para visualización remota.
El portero puede manejar hasta 2 puertas con el accesorio SDDEE1010B
En total pueden haber hasta 20 porteros y 5 pantallas en el sistema
Dahua, nos ofrece este kit de video portero que consta del portero de calle VTO6210BW, con la Pantalla VTH1550CH, incluyendo las fuentes de alimenatción y accesorios de montaje, solo necesitas una conexión de red entre ambos equipos y acceso a internet para visualización remota.
El portero puede manejar hasta 2 puertas con el accesorio SDDEE1010B
En total pueden haber hasta 20 porteros y 5 pantallas en el sistema
|
System |
|
|
Main Processor |
Embedded Micro Processor |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Image Sensor |
1/4” 1MP CMOS |
|
Lens |
3.6mm |
|
Angle of View |
D:70° H:60° |
|
Day/Night |
Color Image |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
Omnidirectional Mic |
|
Audio Output |
Built-in Speaker |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Operation Mode |
|
|
Keypad |
Single Touch Button |
|
Reader |
Mifare Card |
|
Interface |
|
|
Door Control |
2(1 relay out for main lock, 1 extended by access control module) |
|
Alarm In |
2(1ch unlock button, 1ch feedback) |
|
RS485 |
1 |
|
Network |
|
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Ingress Protection |
IP65 |
|
Tamper Switch |
1 |
|
Installation |
Surface |
|
Material |
Tempered Glass |
|
Power |
DC 12V, or supply directly by VTNS1060A |
|
Power Consumption |
Standby =1W, Work =10W |
|
Working Temperature |
?30°C~+60°C |
|
Relative Humidity |
10%~90%RH |
|
Dimensions |
154.2mm×114.2mm×43.0mm |
|
Weight |
0.6Kg |
|

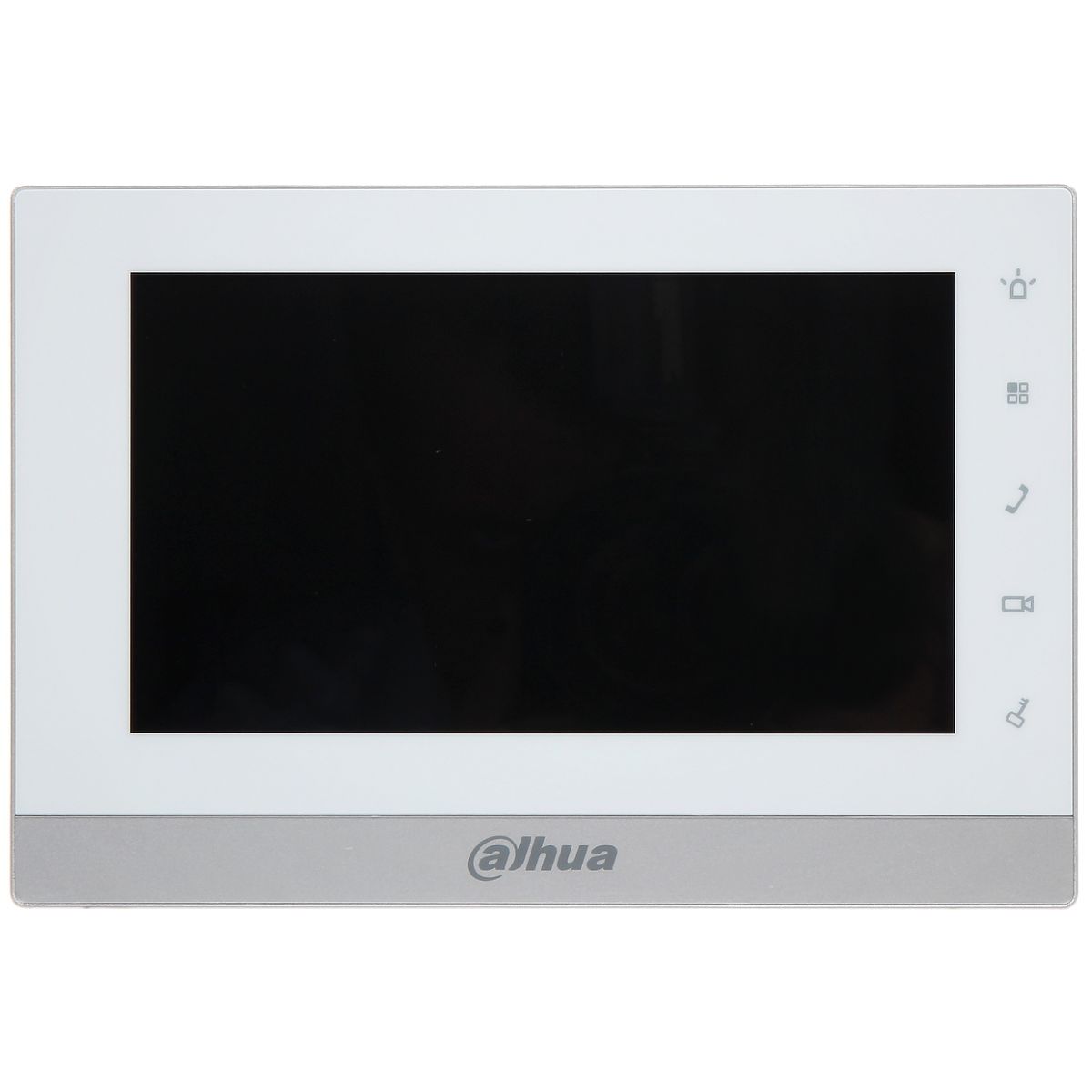

Video Indoor Monitor |
|
|
Model |
VTH1550CH |
|
System |
|
|
Main Processor |
Embedded Micro Process |
|
Operation System |
Embedded LINUX OS |
|
Video |
|
|
Video Compression |
H.264 |
|
Audio |
|
|
Audio Compression |
G.711 |
|
Audio Input |
All-direction Microphone |
|
Audio Output |
Built-in Loudspeaker |
|
Bidirectional Talk |
Support Dual-way Bidirectional talk |
|
Display |
|
|
LCD Screen |
7“ 800x480, Capacitive |
|
Operation Mode |
|
|
Input |
Touch buttons |
|
Interface |
|
|
Alarm In |
6 |
|
Alarm Out |
1 |
|
RS485 |
1 |
|
Network |
|
|
Ethernet |
10M/100Mbps Self-adaptive |
|
Network Protocol |
TCP/IP |
|
General |
|
|
Memory Slot |
Micro SD, Max 32G |
|
Installation |
Surface |
|
Power |
DC 12V, or supply directly by VTNS1060A |
|
Power Consumption |
Standby =1.5W,work=7W |
|
Working Temperature |
-10°C~+55°C |
|
Relative Humidity |
10%~90%RH |
|
Dimensions |
221.2mm×154.3mm×24.2mm |
|
Weight |
0.8Kg |
| Marca | Dahua |
| Part Number | VTK-6210BW-1550CH |
