* Please refer to www.biostar.com.tw for CPU support list.

2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

Each DIMM supports non-ECC 4/8/16/32GB DDR4 module

Support Intel Extreme Memory Profile (XMP) memory modules

* Please refer to www.biostar.com.tw for Memory support list.

HDMI x 1

7.1 Channels, High Definition Audio

10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

1 x PCIe 4.0 x16 Slot (x16 mode)

Intel H610 Chipset

1 x PCIe 3.0 x1 Slot

* Specifications vary by CPU types

2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)

1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

1 x 8-Pin Power Connector

1 x 24-Pin Power Connector

1 x CPU Fan Connector

1 x System Fan Connector

1 x Front Panel Header

1 x Front Audio Header

1 x Internal Stereo Speaker Header

1 x Clear CMOS Header

1 x COM Port Header

1 x TPM Header

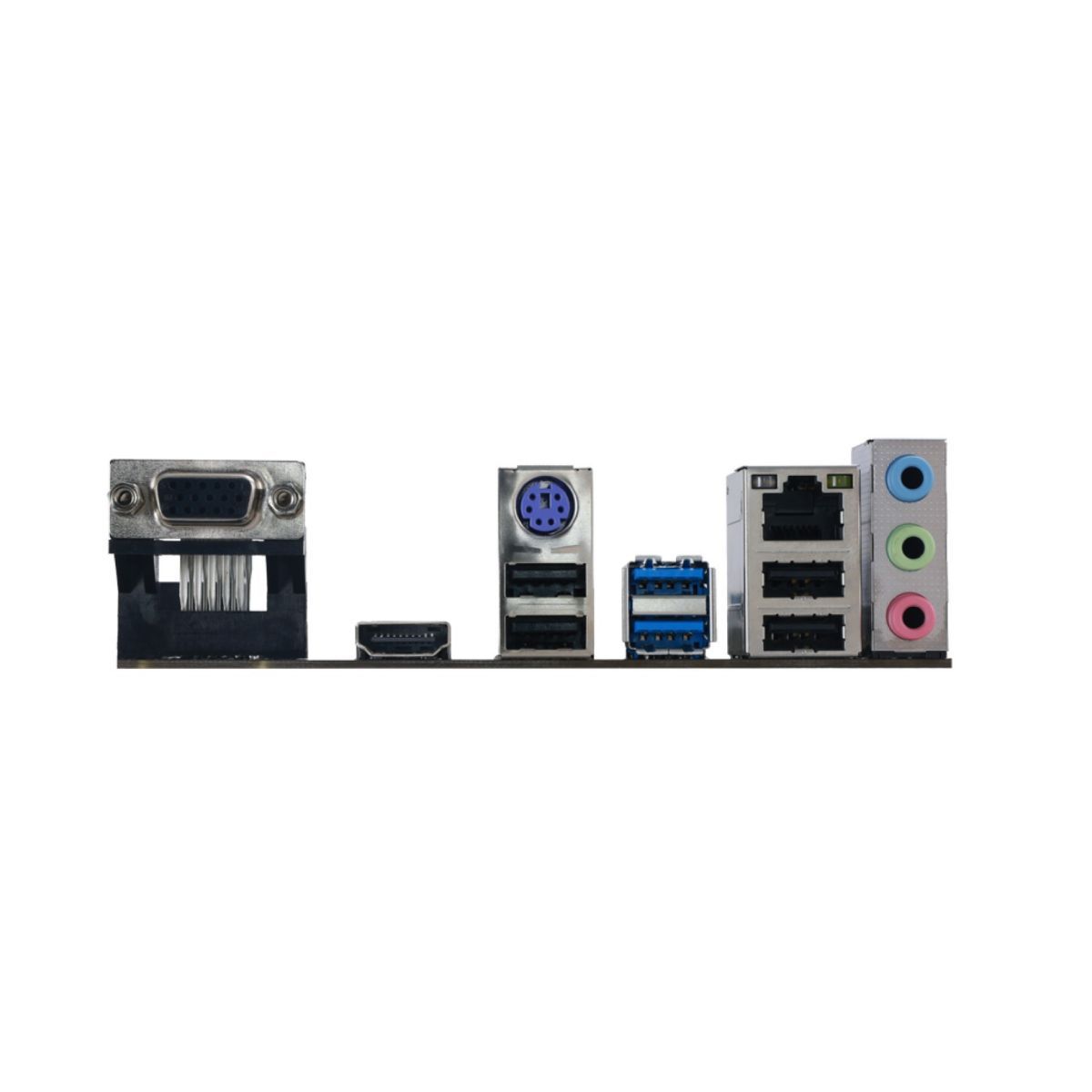

1 x HDMI

1 x VGA Port

2 x USB 3.2 (Gen1) ports

4 x USB 2.0 ports

1 x LAN port

3 x Audio Jack

Intel H610 Chipset

1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):

Supports M.2 Type 2242 /2260 /2280 SSD module

Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD

4 x SATA III Connector (6Gb/s)

* Specifications vary by CPU types

8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)
