- Supports Intel® Hybrid Technology

- Supports Intel® Turbo Boost Max 3.0 Technology

- Supports Intel® Thermal Velocity Boost (TVB)

- Supports Intel® Adaptive Boost Technology (ABT)

- 4 x DDR4 DIMM Slots

- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*

- Supports ECC UDIMM memory modules (operate in non-ECC mode)

- Max. capacity of system memory: 128GB*

- Supports Intel® Extreme Memory Profile (XMP) 2.0

*1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.

1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.

2DPC 1R Up to 4266+ MHz (OC), 3200 MHz Natively.

2DPC 2R Up to 4000+ MHz (OC), 3200 MHz Natively.

- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

- Nahimic Audio

- Intel® I219V

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

- 1 x Chassis Intrusion and Speaker Header

- 1 x RGB LED Header*

- 3 x Addressable LED Headers**

- 1 x CPU Fan Connector (4-pin)***

- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)

- 1 x Front Panel Audio Connector

- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 1 x Front Panel Type C USB 3.2 Gen1 Header

*Supports in total up to 12V/3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~4/WP support the fan power up to 2A (24W).

CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

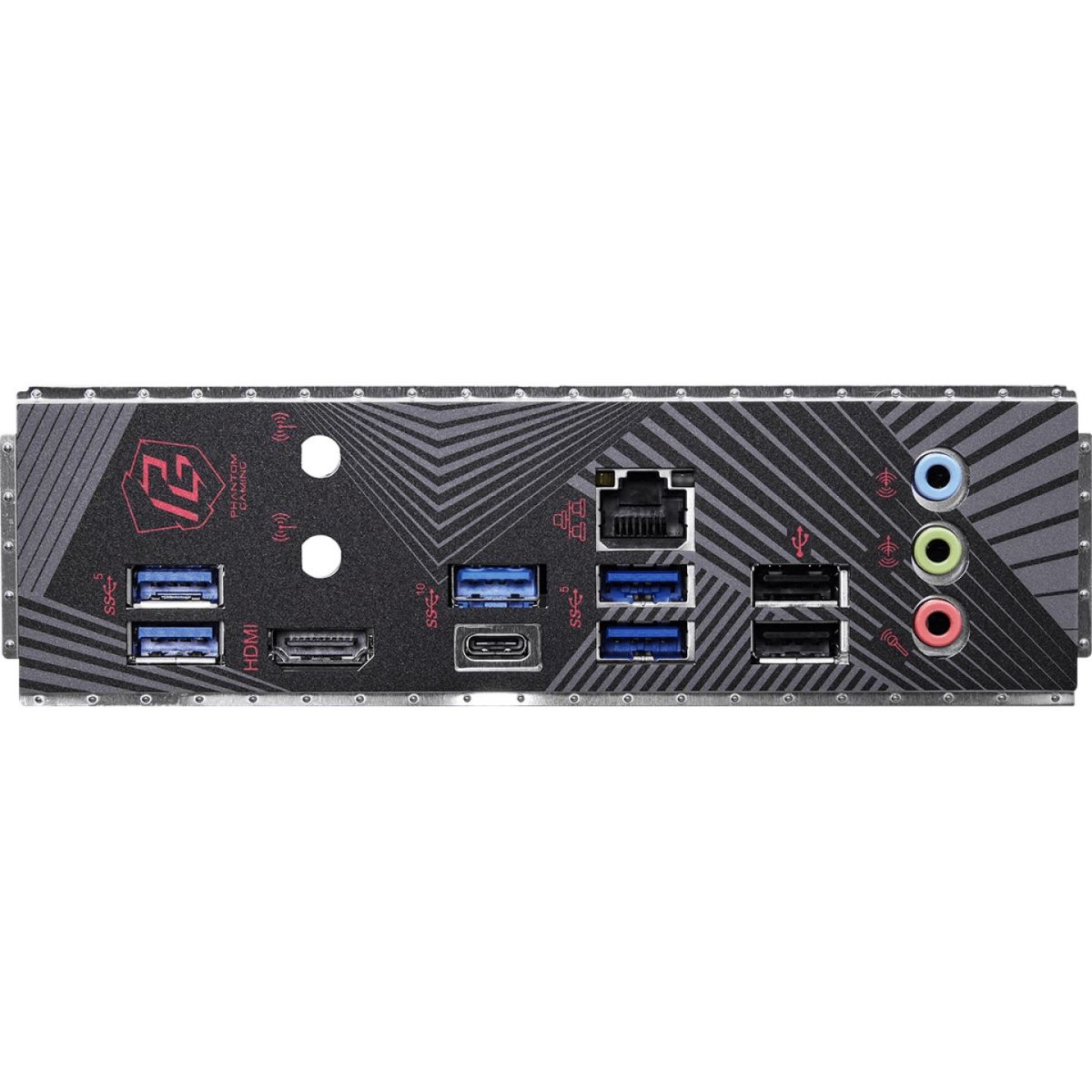

- 1 x HDMI Port

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

- 4 x USB 3.2 Gen1 Ports

- 2 x USB 2.0 Ports

- 1 x RJ-45 LAN Port

- HD Audio Jacks: Line in / Front Speaker / Microphone

- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes*

- 4 x SATA3 6.0 Gb/s Connectors

*Supports Intel® Volume Management Device (VMD)

Supports NVMe SSD as boot disks

- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

*Requires additional M.2 NVMe expansion cards to support RAID 10

- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*

- 1 x PCIe 3.0 x1 Slot (PCIE2)*

- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

- Supports AMD CrossFire™

*Supports NVMe SSD as boot disks

- 1 x USB 3.2 Gen2 Type-C (Rear)

- 1 x USB 3.2 Gen1 Type-C (Front)

- 6 x USB 3.2 Gen1 Type-A (4 Rear, 2 Front)

- 6 x USB 2.0 (2 Rear, 4 Front)

* All USB ports support ESD Protection
