CÓDIGO: MAD1800M

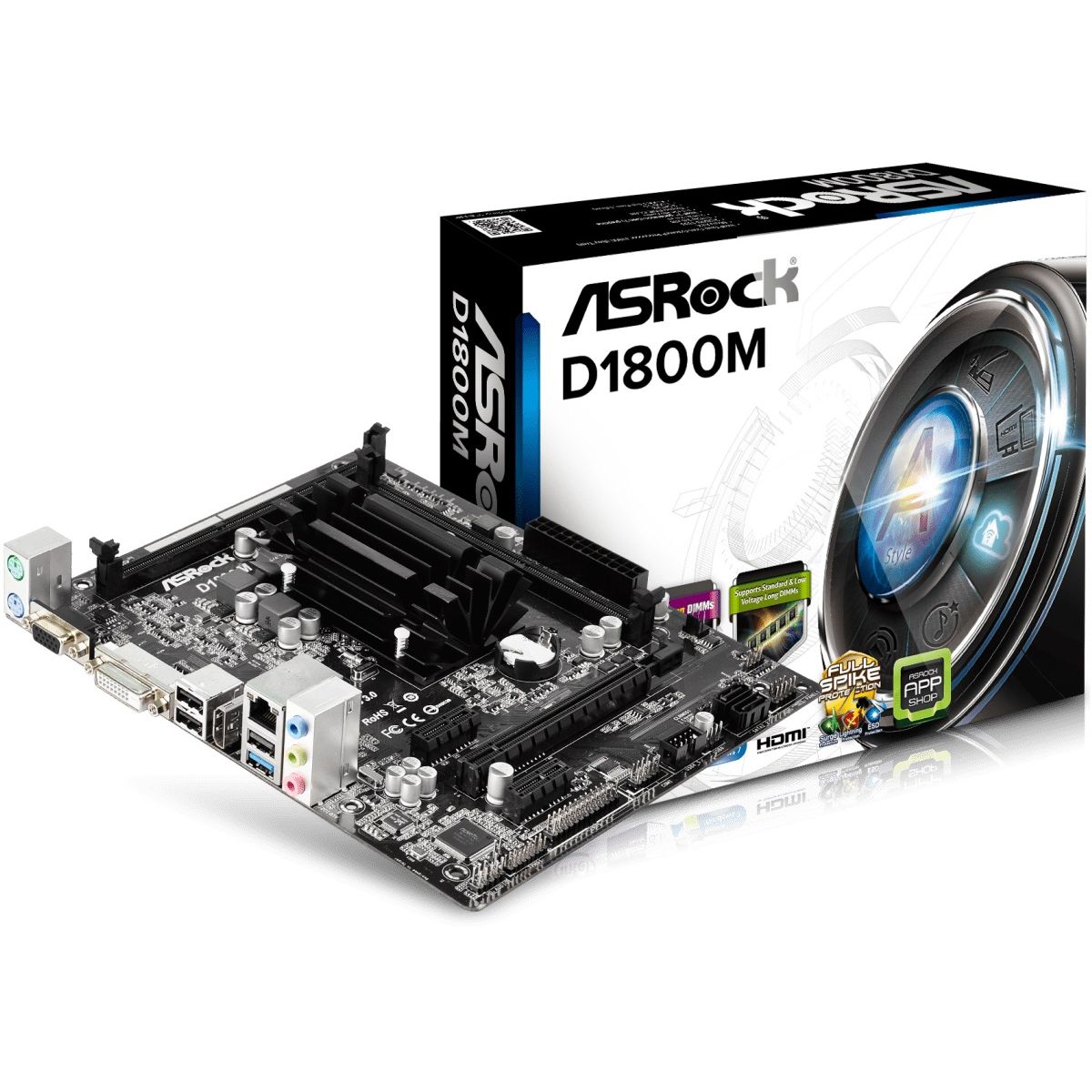

Motherboard Asrock D1800m Cpu Onboard



DESCRIPCIÓN

MarcaAsrock

Part Number90-MXGUK0-A0UAYZ

CpuIntel® Dual-Core Processor J1800 (2.41 GHz) Incorporado
Memoria- Dual Channel DDR3/DDR3L Memory Technology

- 2 x DDR3/DDR3L DIMM Slots

- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory

- Max. capacity of system memory: 16GB*

Bios- 64Mb AMI UEFI Legal BIOS with GUI support

- Supports Plug and Play

- ACPI 5.0 Compliant wake up events

- Supports jumperfree

- SMBIOS 2.7 Support

Gráficos- Intel® 7th generation (Gen 7) graphics

- DirectX 11.0, Pixel Shader 5.0

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

- Supports HDCP with DVI-D and HDMI Ports

- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Audio- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)

- Supports Surge Protection (ASRock Full Spike Protection)

Lan- PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Realtek RTL8111GR

- Supports Wake-On-WAN

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection (ASRock Full Spike Protection)

- Supports LAN Cable Detection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Ranuras De Expansión- 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)

- 2 x PCI Express 2.0 x1 Slots

Conectores- 1 x Print Port Header

- 1 x COM Port Header

- 1 x TPM Header

- 1 x Chassis Intrusion Header

- 1 x CPU Fan Connector (3-pin)

- 1 x Chassis Fan Connector (3-pin)

- 1 x 24 pin ATX Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

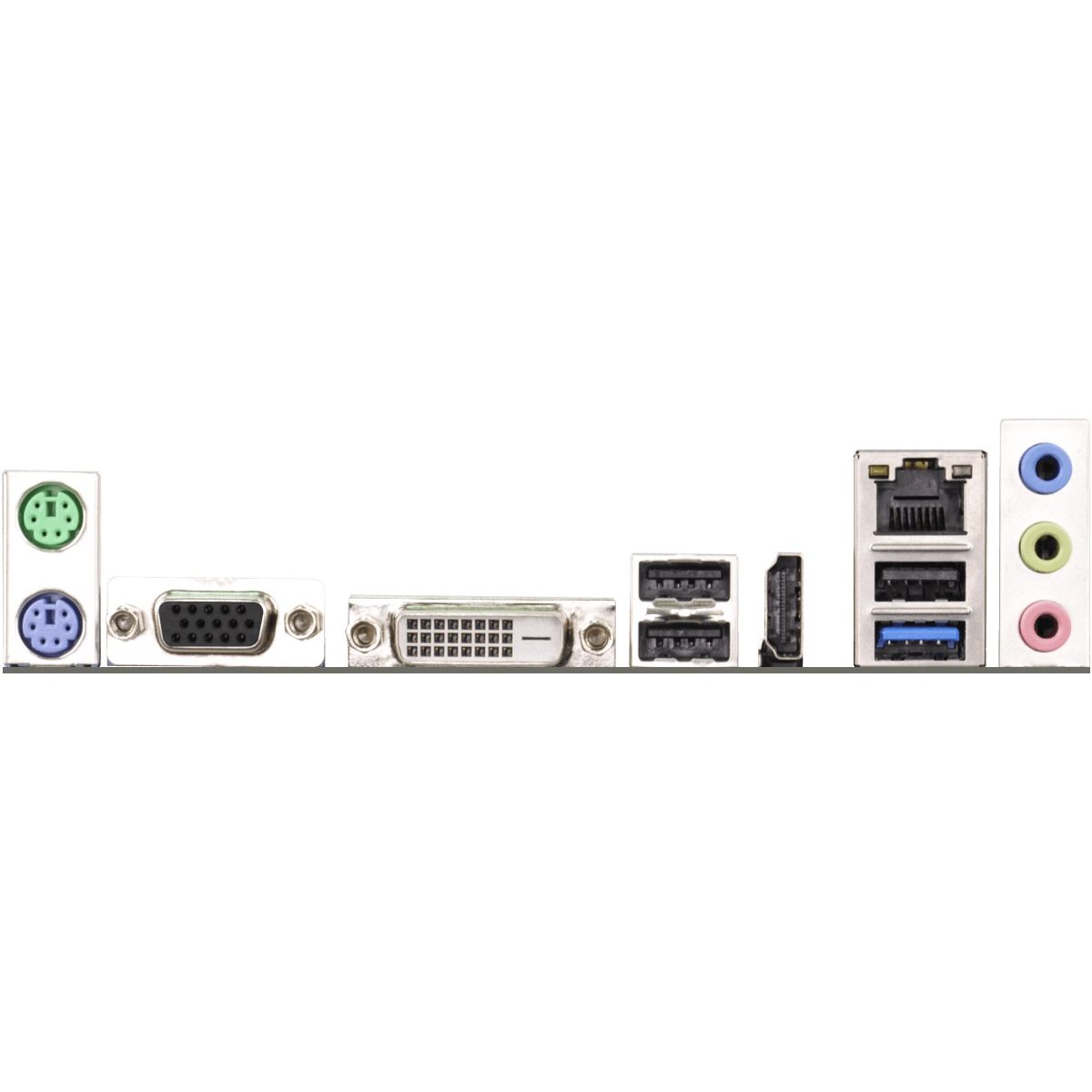

Panel Trasero E/s- 1 x PS/2 Mouse Port

- 1 x PS/2 Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

- 1 x USB 3.1 Gen1 Port (Supports ESD Protection (ASRock Full Spike Protection))

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Formato- Micro ATX Form Factor

- All Solid Capacitor design

- High Density Glass Fabric PCB

Almacenamiento- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
