CÓDIGO: MAB760MPGRIP
| Marca | Asrock |
| Part Number | 90-MXBL60-A0UAYZ |
| CPU | - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) - Supports Intel® Hybrid Technology - Supports Intel® Turbo Boost Max 3.0 Technology - Supports Intel® Thermal Velocity Boost (TVB) - Supports Intel® Adaptive Boost Technology (ABT) - Supports ASRock Hyper BCLK Engine |
| Chipset | Intel B760 |
| Memoria | - Dual Channel DDR5 Memory Technology - 4 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)* - Max. capacity of system memory: 192GB - Supports Intel® Extreme Memory Profile (XMP) 3.0 |
| Gráficos | - Intel® Xe Graphics Architecture (Gen 12) - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. |
| Audio | - 7.1 CH HD Audio (Realtek ALC897 Audio Codec) - Nahimic Audio |
| LAN | - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Dragon RTL8125BG - Supports Phantom Gaming LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
| Ranuras de Expansión | - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2)* - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) *Supports NVMe SSD as boot disks |
| Conectores | - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x RGB LED Header* - 3 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen1 Header *Supports in total up to 12V/3A, 36W LED Strip **Support in total up to 5V/3A, 15W LED Strip ***CPU_FAN1 supports the fan power up to 1A (12W). ****CPU_FAN2/WP supports the fan power up to 2A (24W). *****CHA_FAN1~3/WP support the fan power up to 2A (24W). CPU_FAN2/WP and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |

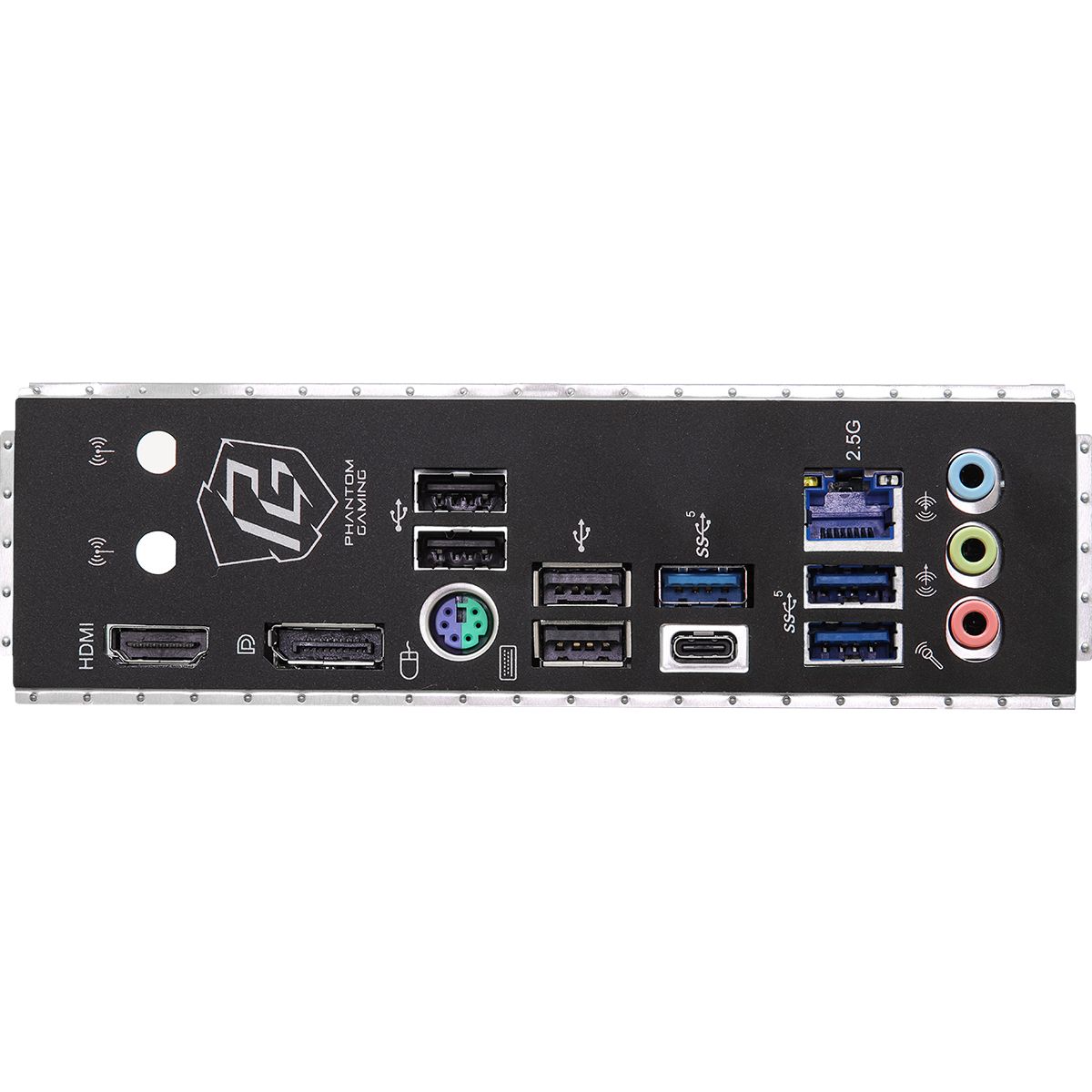

| Panel trasero E/S | - 2 x Antenna Mounting Points - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen1 Type-C Port - 3 x USB 3.2 Gen1 Type-A Ports - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Formato | - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm |
| Socket | S1700 |
| Almacenamiento | - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 4 x SATA3 6.0 Gb/s Connectors *Supports Intel® Volume Management Device (VMD) Supports NVMe SSD as boot disks |
| RAID | Admite RAID 0, RAID 1, RAID 5 y RAID 10 para dispositivos de almacenamiento SATA |
