CÓDIGO: MAB360MHDV

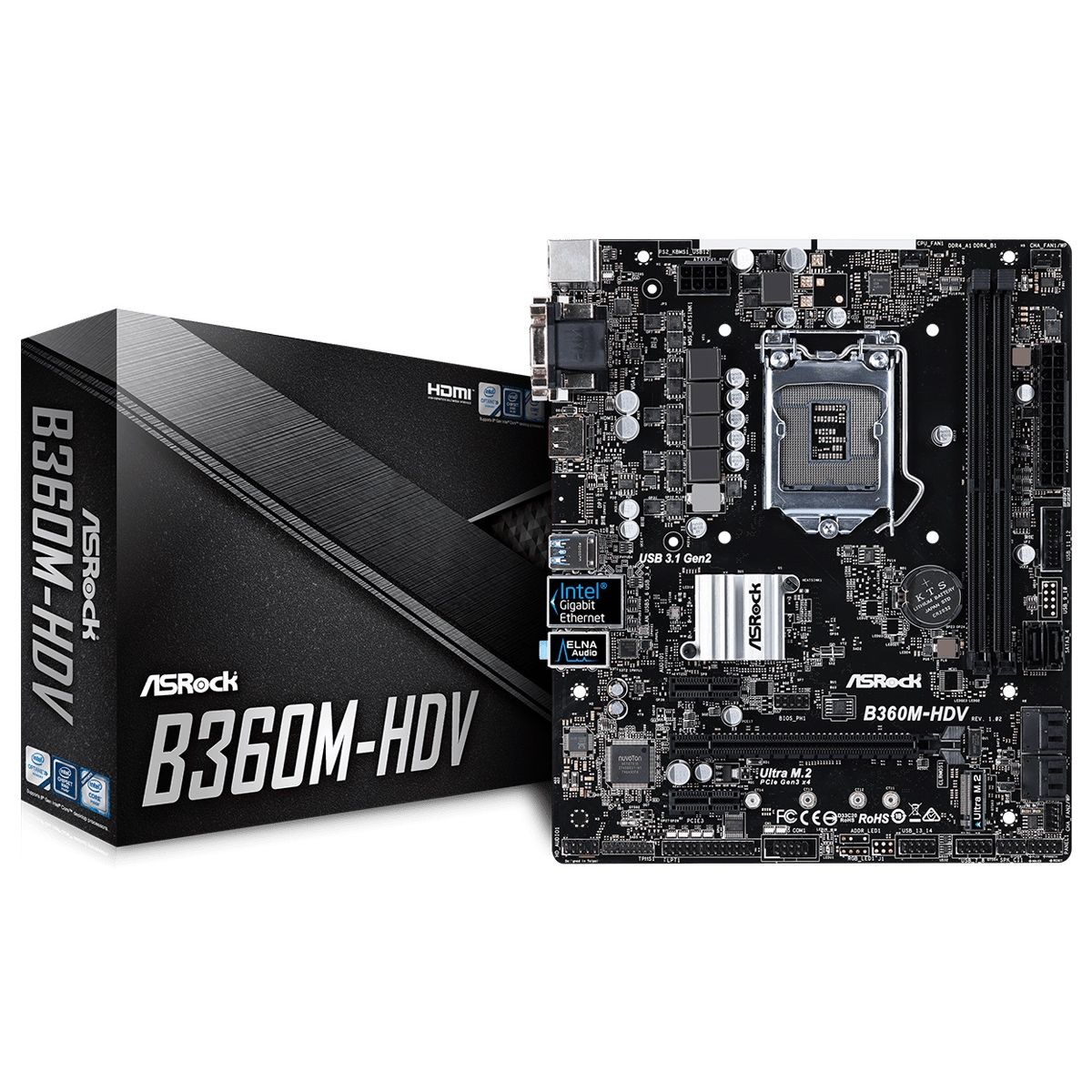

Motherboard Asrock B360m Hdv S1151 8va Gen



DESCRIPCIÓN

MarcaAsrock

Part Number90-MXB730-A0UAYZ

Cpu- Supports 8th Generation Intel® Core™ Processors (Socket 1151)

- Supports CPU up to 95W

- 5 Power Phase design

- Supports Intel® Turbo Boost 2.0 Technology

Chipset- Intel® B360
Memoria- Dual Channel DDR4 Memory Technology

- 2 x DDR4 DIMM Slots

- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory

- Max. capacity of system memory: 32GB*

- Supports Intel® Extreme Memory Profile (XMP) 2.0

- 15µ Gold Contact in DIMM Slots

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

Bios- 128Mb AMI UEFI Legal BIOS with multilingual GUI support

- ACPI 6.0 Compliant wake up events

- SMBIOS 2.7 Support

- CPU, GT_CPU, DRAM, PCH 1.05V Voltage Multi-adjustment

Gráficos- Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics

- DirectX 12

- HWAEncode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)

- Three graphics output options: D-Sub, DVI-D and HDMI

- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz

- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

- Supports HDCP with DVI-D and HDMI Ports

- Supports 4K Ultra HD (UHD) playback with HDMI Port

*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.

Audio- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)*

- Supports Surge Protection

- ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Lan- Gigabit LAN 10/100/1000 Mb/s

- Giga PHY Intel® I219V

- Supports Wake-On-LAN

- Supports Lightning/ESD Protection

- Supports Energy Efficient Ethernet 802.3az

- Supports PXE

Conectores- 1 x Print Port Header

- 1 x COM Port Header

- 1 x TPM Header

- 1 x Chassis Intrusion and Speaker Header

- 1 x CPU Fan Connector (4-pin)*

- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**

- 1 x 24 pin ATX Power Connector

- 1 x 8 pin 12V Power Connector

- 1 x Front Panel Audio Connector

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

**The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.

Panel Trasero E/s- 1 x PS/2 Mouse/Keyboard Port

- 1 x D-Sub Port

- 1 x DVI-D Port

- 1 x HDMI Port

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 4 x USB 3.1 Gen2 Type-A Ports (10 Gb/s)

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jacks: Line in / Front Speaker / Microphone

Caract. EspecialesASRock USB 3.1 Gen2

- ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)

ASRock Super Alloy

- Sapphire Black PCB

- High Density Glass Fabric PCB

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Spike Protection (for USB, Audio, LAN Ports)

ASRock Live Update & APP Shop

Accesorios- Quick Installation Guide, Support CD, I/O Shield

- 2 x SATA Data Cables

- 1 x Screw for M.2 Socket

Certificaciones- FCC, CE

- ErP/EuP ready (ErP/EuP ready power supply is required)

Almacenamiento- 6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug*

- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

*If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

**Supports Intel® Optane™ Technology

Supports NVMe SSD as boot disks

Supports ASRock U.2 Kit

Slots- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*

- 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)

*Supports NVMe SSD as boot disks
